. Operation voltage: 6V battery (4pcs1.5V battery)
2.Battery life: 2 years replaceable(如果选择10年电池,价格比现在的贵16元)
3. Standby current: 30uA
4. Wake up cycle: 12 seconds
5. Low voltage threshold: 5.6V
6. Sound intensity: ≥85dB / 3m

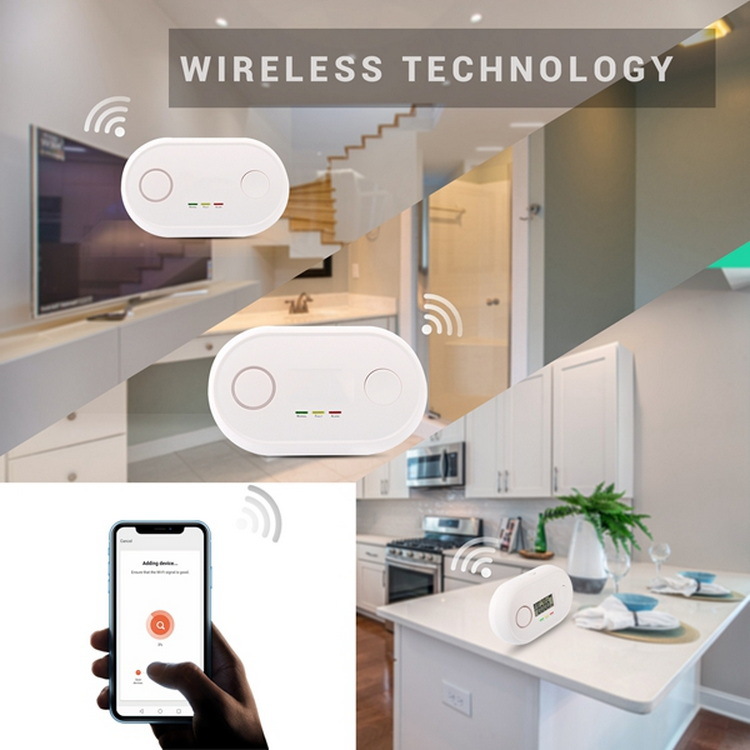

7.Wireless frequency: 2.4GHZ
Wireless detection distance:15-25m indoor, 150m for open area

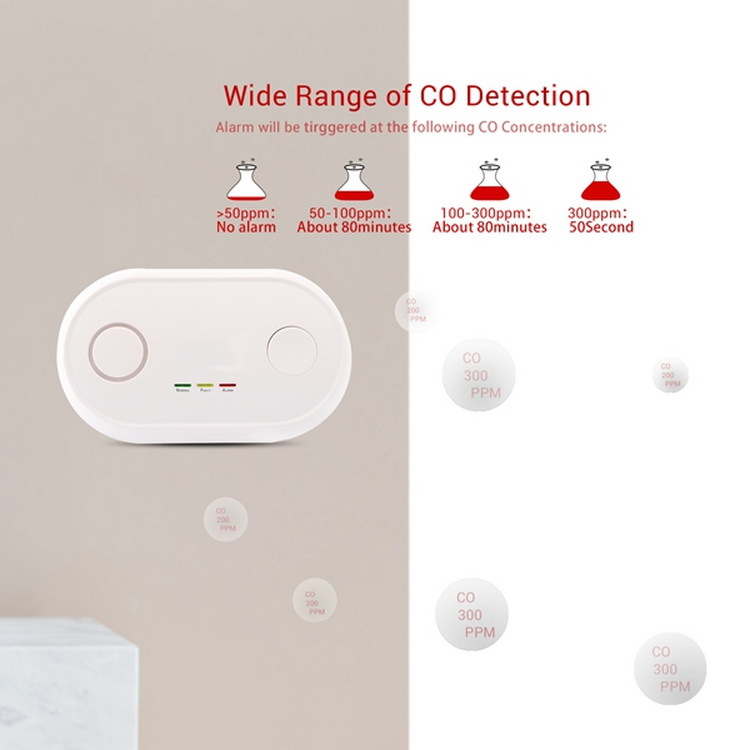

8 CO: Alarm density:
50ppm,alarms not activate within 120 minutes
50-100ppm,alarms within 80 minutes
100-300ppm,alarm with 30 minutes
300ppm,alarm within 50seconds
9.Product size : Φ120*650*35mm
10.G.W:240g
11App: TUYA Smart /Smart Life
12,Executive standard: EN50291-1: 2018
Specification
| Model | 830 |
| Target Gas | CO |
| Working Environment | Temperature: 0 ~ 40 degree Celsius Humidity: <95%RH (No Condensation) |
| Gas Sampling | Natural diffusion |
| Detecting Range | 0~100% LEL |
| Presetting Alarm Level | 7% LEL |
| Power supply | 6V battery (4pcs1.5V battery) |
| Static current | <80uA |
| Alarm current | <30mA |
| Alarm voice | Light/sound prompt |
| Weight | 120g |
| Dimension | 104*39mm |
| Sensor | electrochemical carbon monoxide sensor and Infrared photoelectric sensor |
| Battery capacity | low battery alarm |
Details
Manual
Installation Instructions
Installation location:
1)The detector and gas source should be located in the same indoor space.
2)The detector distance may be 1~3 meters away from the possible gas leak source is the best.
3)The detector should be installed less than 30cm from the ceiling.
Kitchen installation illustration
Maintenance
1) After storage and long time transport, the first time in use needs electricity aging more than 24 hours in
order to achieve the best performance.
2) During the usage period, activate the self-test at least once six month to confirm that the device works
normally. In the case of safety, please use a known concentrate gas for impacting test to confirm that the
device work normally.
3) It’s suggested to clean the shell of the combustible gas detector frequently to prevent its air hole being
blocked by dust. When cleaning the shell of the device, use clean soft brush or dry fluffy cloth without
detergent, decolorizer and polish. Cut off power supply when cleaning the shell.
4) N1 is designed for indoor use only. Please avoid contacting with rain, moisture, also need to avoid
drop. Do not beat, open or modification it, otherwise it may lead to product failure.
5) The detector should not be used near the volatile substance such as alcohol, hair gel, etc.
If false report caused, please open the ventilation device to make sure the detector return to normal detecting conditions.
6) Under normal circumstance, the service is 5 years. Please replace with new ones if exceed the
lifespan.
